BIOCLENS® (Lens Encapsulated Bacteria)

BIOCLENS®

Lens Encapsulated Bacteria

Our BIOCLENS® technology uses encapsulated bacteria in a lens shaped carrier to provide intensified ammonia and nitrate removal to very low levels.

Desalination of water

Cost Effective Ammonia and Nitrate Removal

Our BIOCLENS® technology uses bacteria encapsulated in lenses as a biocatalyst to enhance and accelerate natural biological processes which break down organic matter.

The lenses contain living bacteria which is immobilised in a stable, porous PVA gel matrix. As these are stirred in a reactor, water and dissolved impurities diffuse through the lenses and come in contact with the bacteria, causing targeted reactions to occur. The specific bacteria required for nitrification or denitrification can be encapsulated in the lens, creating intensified activity. The encapsulation protects bacteria in saline environments and from high concentration of ammonia or nitrate in the feed (above 1,000ppm).

BIOCLENS® Diagram

BIOCLENS® (Lens Encapsulated Bacteria)

Targeted Reactions

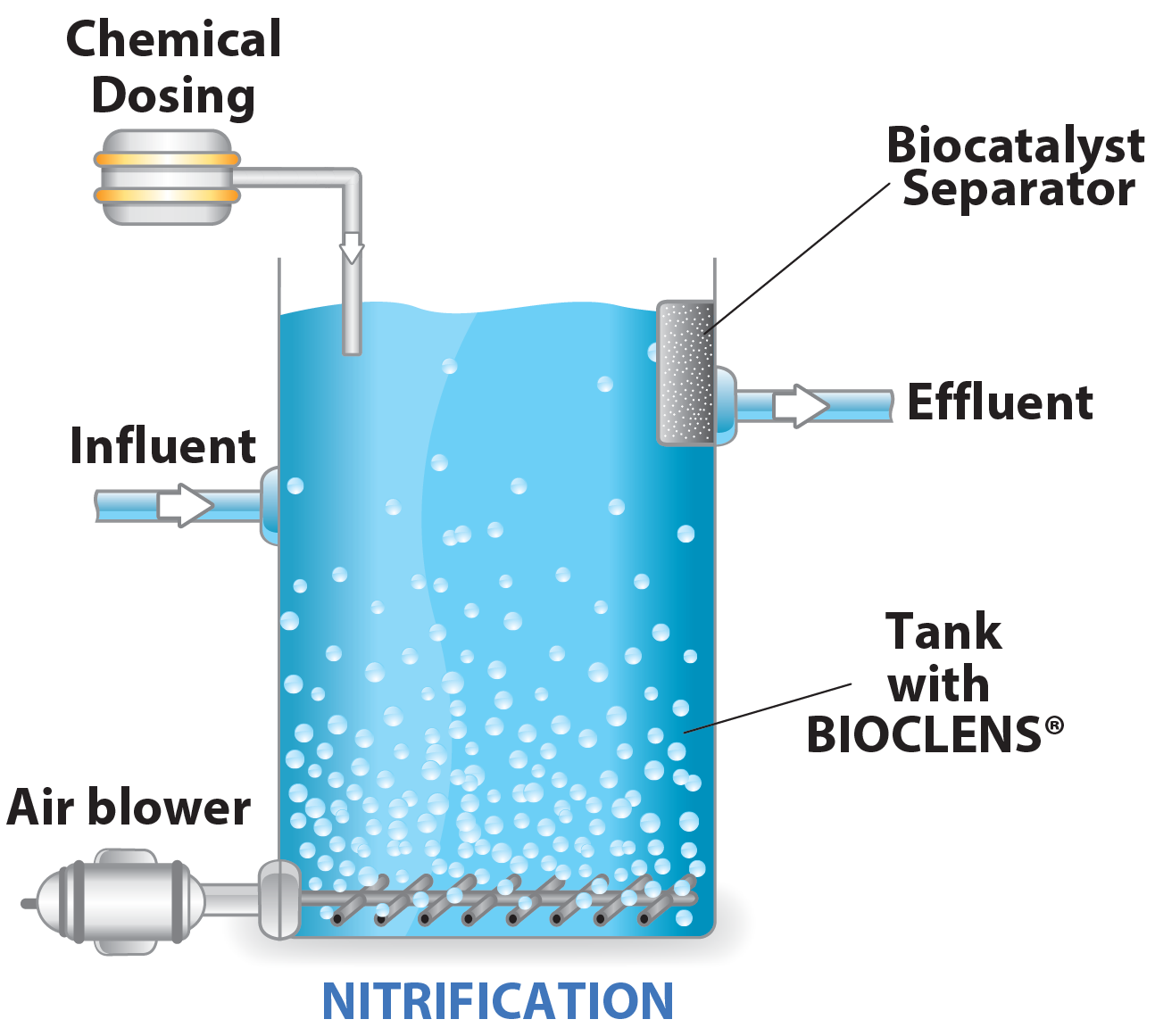

Ammonia Removal

Ammonium (NH4+) in the wastewater permeates into the lens​ to allow the ammonia oxidizing bacteria (AOB), embedded inside lens, convert the ammonium (NH4+) to nitrite (NO2)​.

NH4+ + 1.5 O2 → NO2+ 2H+ + H2O​

Then the nitrite oxidizing bacteria (NOB), also embedded in the lens, then convert nitrite (NO2) to nitrate (NO3).

NO2+ 0.5 O2 → NO3

BIOCLENS® (Lens Encapsulated Bacteria)
BIOCLENS® (Lens Encapsulated Bacteria)

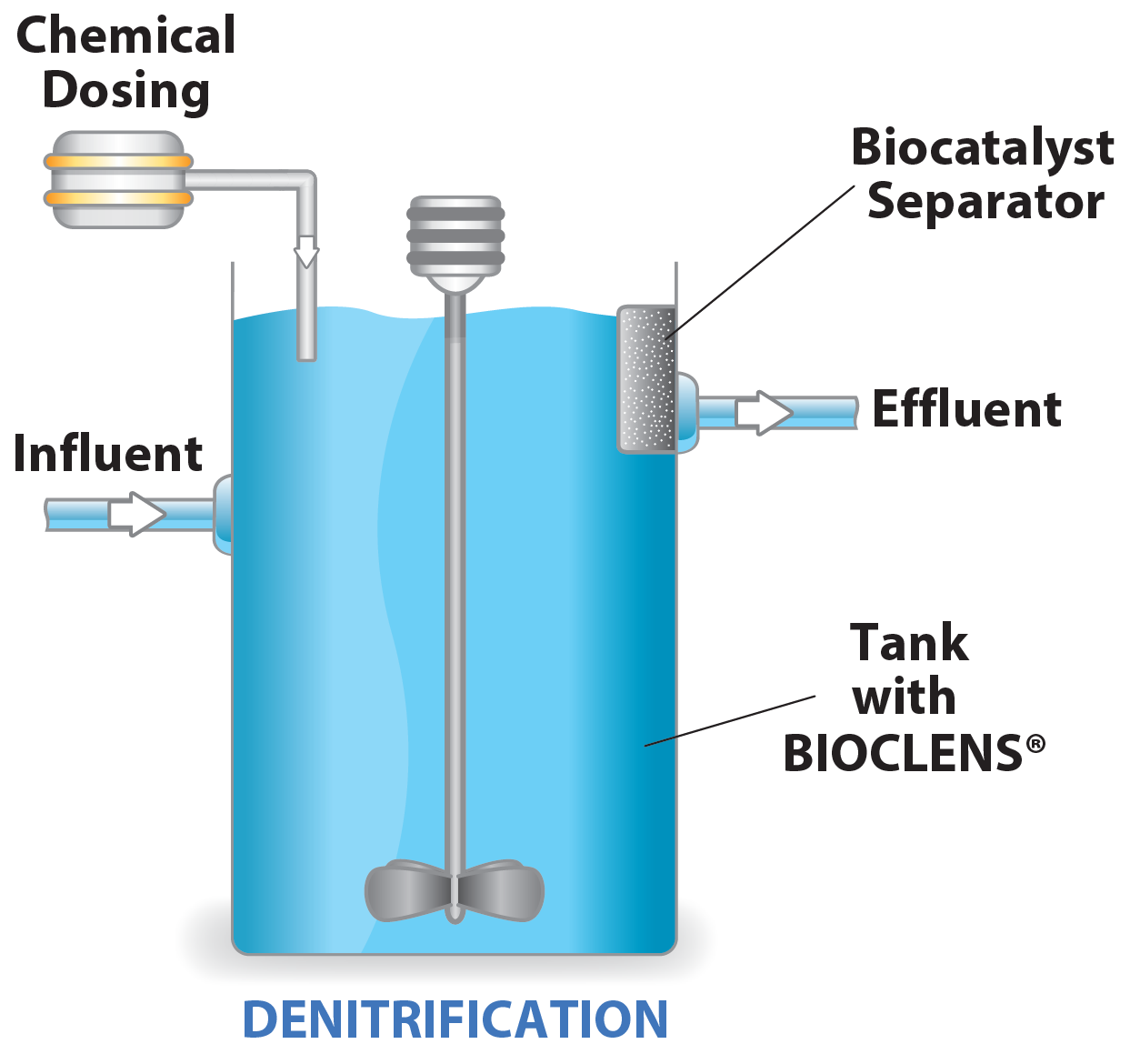

Nitrate Removal

Nitrate (NO3) in the water permeates into the lens

Nitrate reducing bacteria embedded inside the lens convert the nitrate (NO3) to nitrite (NO2)

Nitrite (NO2) is then converted to nitrogen gas (N2)

Both reactions require a carbon source as an electron donor

2NO3+ 10e +12H+ → N2 + 6H2O

Have a water treatment issue?

We're here to help...

Benefits

ACHIEVE VERY LOW AMMONIA AND NITRATE LEVELS (<1PPM)
SMALLER SITE FOOTPRINTS DUE TO HIGH BACTERIA ACTIVITY
HIGH ACTIVITY IN SALINE ENVIRONMENTS AND WITH HIGH INFLUENT CONCENTRATIONS DUE TO ENCAPSULATION
LOW CAPITAL AND LIFE-CYCLE COSTS

Applications

BIOCLENS® can be applied to a range of industries:

Case Studies

BIOCLENS® (Lens Encapsulated Bacteria)

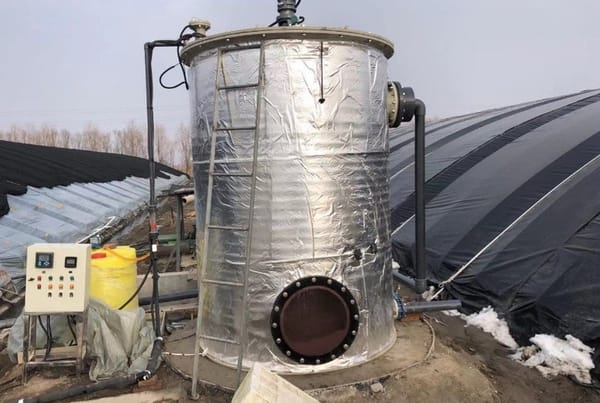

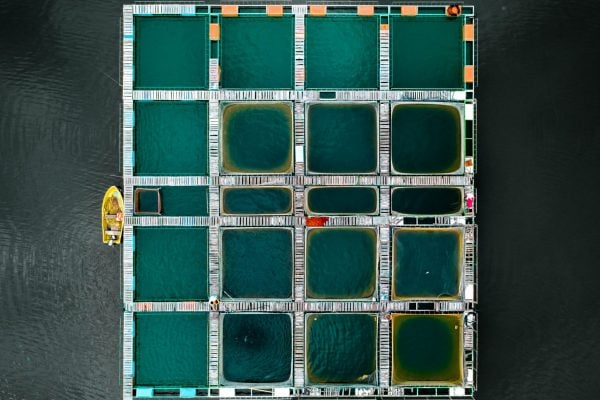

Shrimp Farm Nitrate Removal, China

2.5 m3/h BIOCLENS® system to remove nitrate from shrimp ponds in China.

BIOCLENS® (Lens Encapsulated Bacteria)

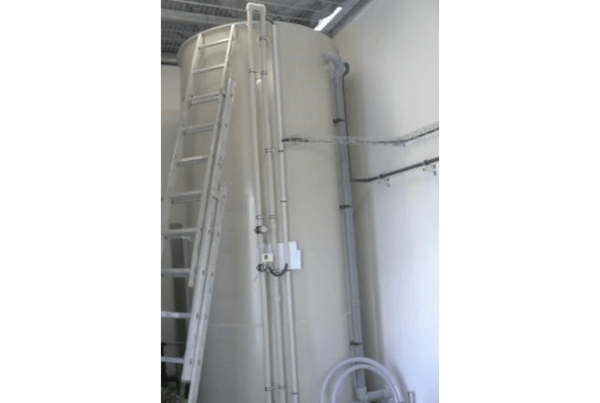

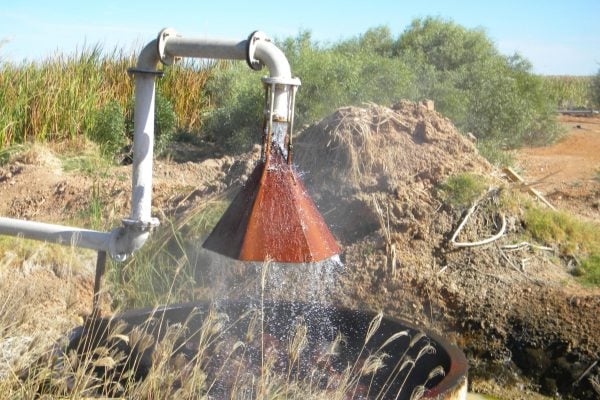

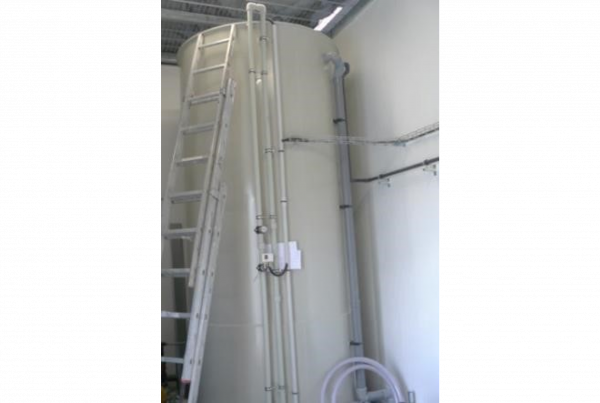

Nitrification of Groundwater, Czech Republic

BIOCLENS® system to remove ammonia for drinking water to <1 mg/L

BIOCLENS® (Lens Encapsulated Bacteria)

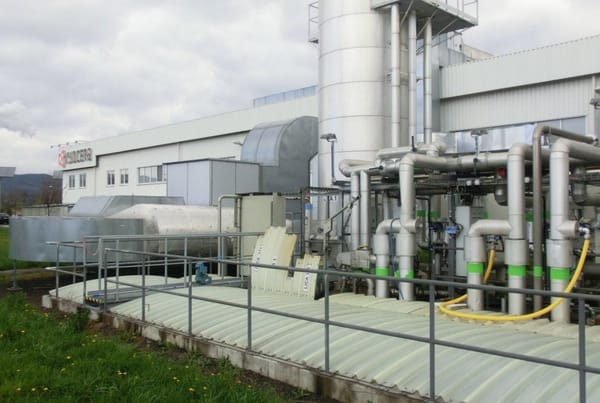

Treatment of Wastewater for VOC and BOD, Czech Republic

BIOCLENS® were used to remove VOC from 70m3/h of industrial wastewater.

BIOCLENS® (Lens Encapsulated Bacteria)

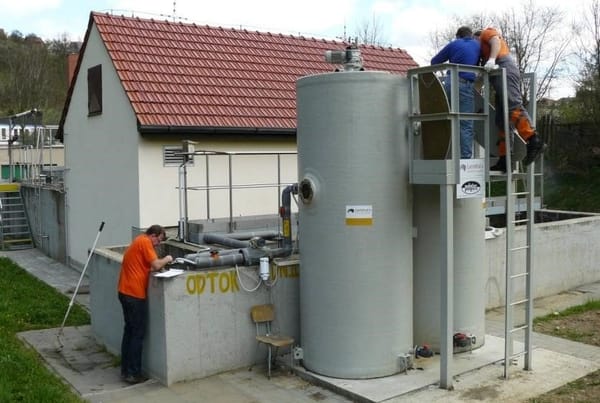

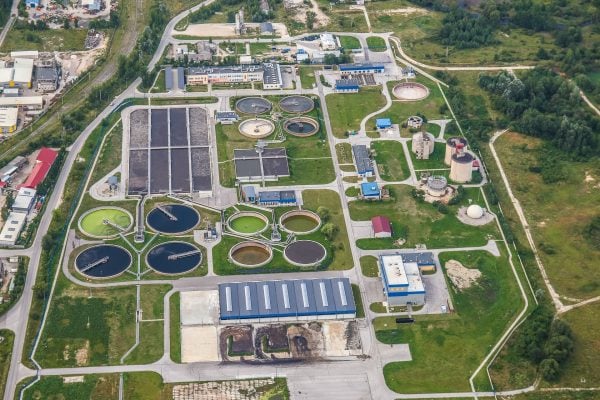

Tertiary Nitrate Treatment at a WWTP, Czech Republic

BIOCLENS® treatment of 12.5 m3/h to below 10mg/L nitrate.

BIOCLENS® (Lens Encapsulated Bacteria)

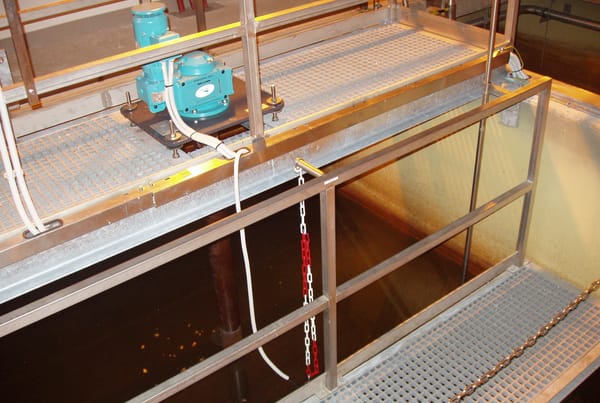

Post-Denitrification at a WWTP, Czech Republic

BIOCLENS® system to polish 5 m3/h of effluent to below 2mg/L nitrate.
