PHOSPHIX®

Complete Phosphorus Removal and Recovery

PHOSPHIX® is a combination of Moving Bed Ion Exchange (MBIX) with chemical precipitation that removes phosphate to less than 0.1 ppm and recovers a solid phosphorus product.

PHOSPHIX® for Phosphate Removal

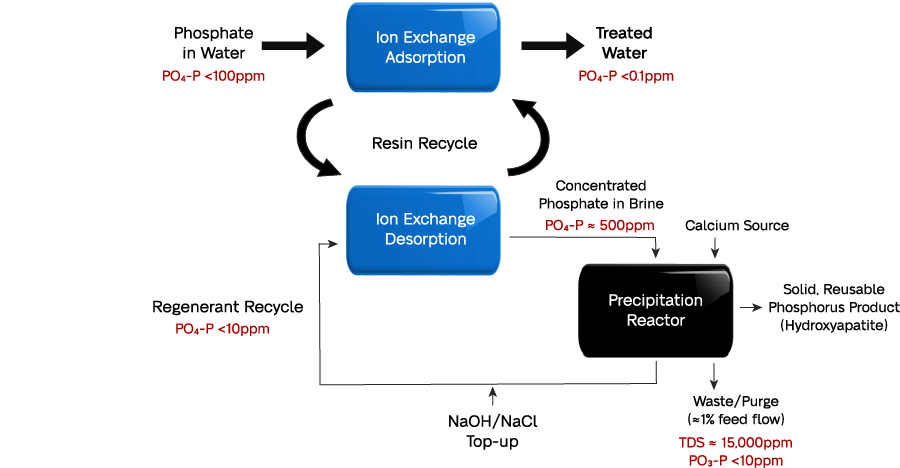

PHOSPHIX® is a combination of Moving Bed Ion Exchange (MBIX) and chemical precipitation. This phosphate technology involves the ion exchange process selectively removing phosphate from the water. Phosphate is precipitated into a solid phosphorus product with low solubility, suitable for recycling.

Precipitating the phosphate from the brine allows it to be recycled in the brine loop and used again to regenerate the ion exchange resin. This greatly minimises chemical consumption, waste production, has a smaller footprint, and has roughly half the operating cost when compared to commonly used precipitation systems. Using PHOSPHIX®, total phosphate effluent concentrations below 0.1 ppm can consistently be achieved.

Get In Touch

What is Moving Bed Ion Exchange (MBIX?)

Benefits of PHOSPHIX®

CONSTANT PHOSPHATE REMOVAL TO <0.1 PPM USING ION EXCHANGE

VERY HIGH WATER RECOVERY
(TYPICALLY >99%) AND LOW WASTE PRODUCTION SINCE THE BRINE RESUSE

SMALLER SITE FOOTPRINTS DUE TO SIDE STREAM PERCIPITATION AND NO CHEMICAL ADDITION TO MAIN STREAM (NO TSS INCREASE)

TYPICALLY 50% LOWER OERATIONAL COSTS THAN OTHER PHOSPHATE REMOVAL METHODS

CREATS A SOLID, REUSABLE PHOSPHORUS PRODUCT WITH LOW SOLUBILITY

Applications

Why remove phosphorus from wastewater?

Excess phosphorus discharged into waterways can contribute to eutrophication, driving excessive algae growth and degrading aquatic ecosystems. As discharge limits tighten, industrial and municipal wastewater operators need effective ways to reduce phosphorus concentrations before treated water is released to the environment.

PHOSPHIX® can be used for feeds up to 100 mg/L phosphate and produces water with a phosphate concentration below 0.1 mg/L. The solid phosphorus product produced can be reused in a range of industries, including fertiliser production.

PHOSPHIX® has a wide range of applications:

Mining Water & Industrial Water – phosphate removal from process water, wastewater and brines enabling reuse or safe discharge
Municipal Reuse – Phosphate polishing to low levels to meet strict discharge limits from municipal wastewater treatment plants
Surface Water Treatment – removal of phosphates from water to prevent blue/green algal blooms
Aquaculture & Agriculture – phosphate removal from run off and drainage allowing safe discharge of water to the environment

Municipal wastewater treatment

Surface Water

Aquaculture

Agriculture
