Clean TeQ Water was engaged to provide processing plant water treatment of a 0.5 MLD DESALX® plant to treat multiple waste streams at an antimony ore roasting plant and provide high-quality water for reuse.

Summary

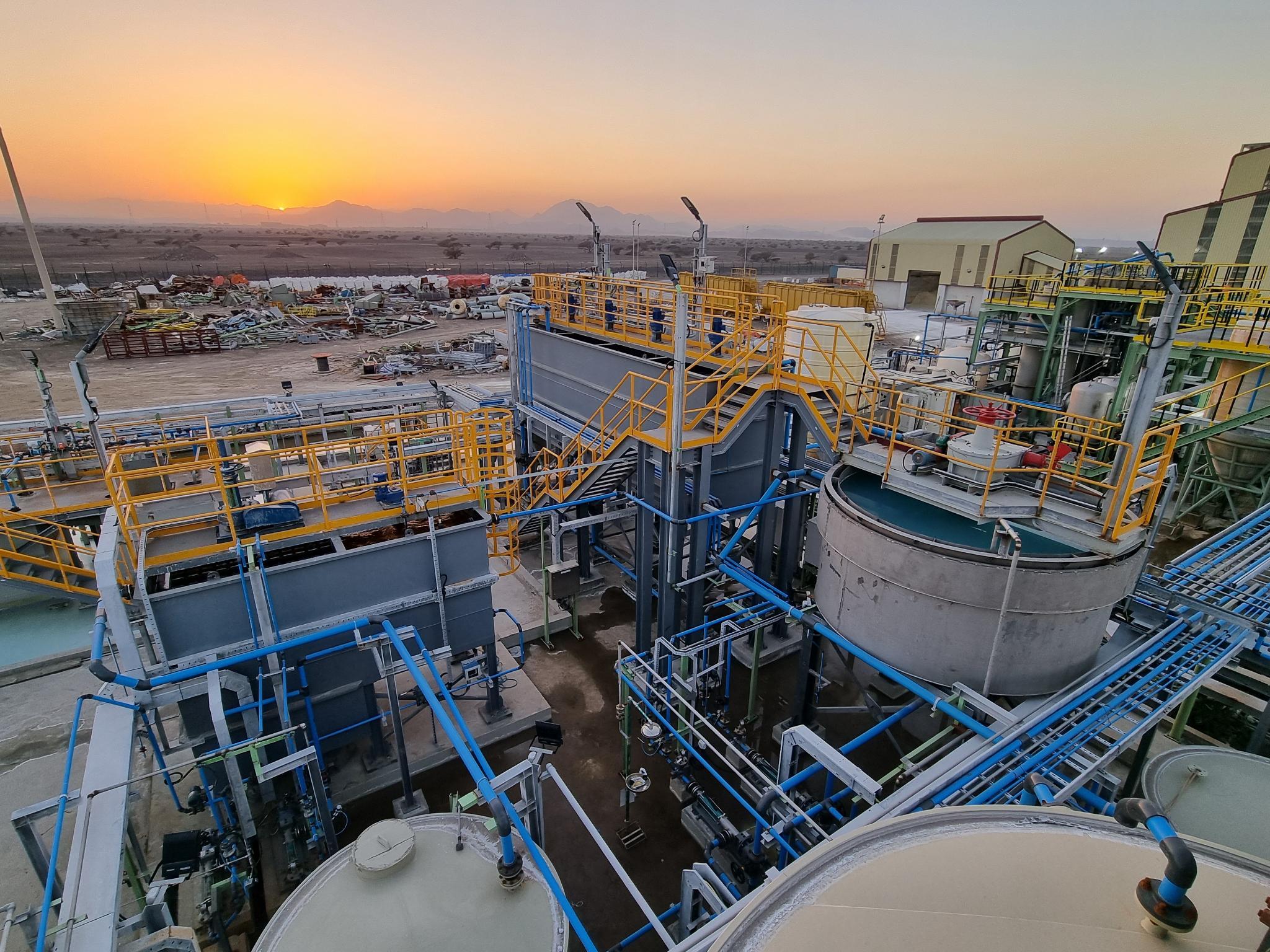

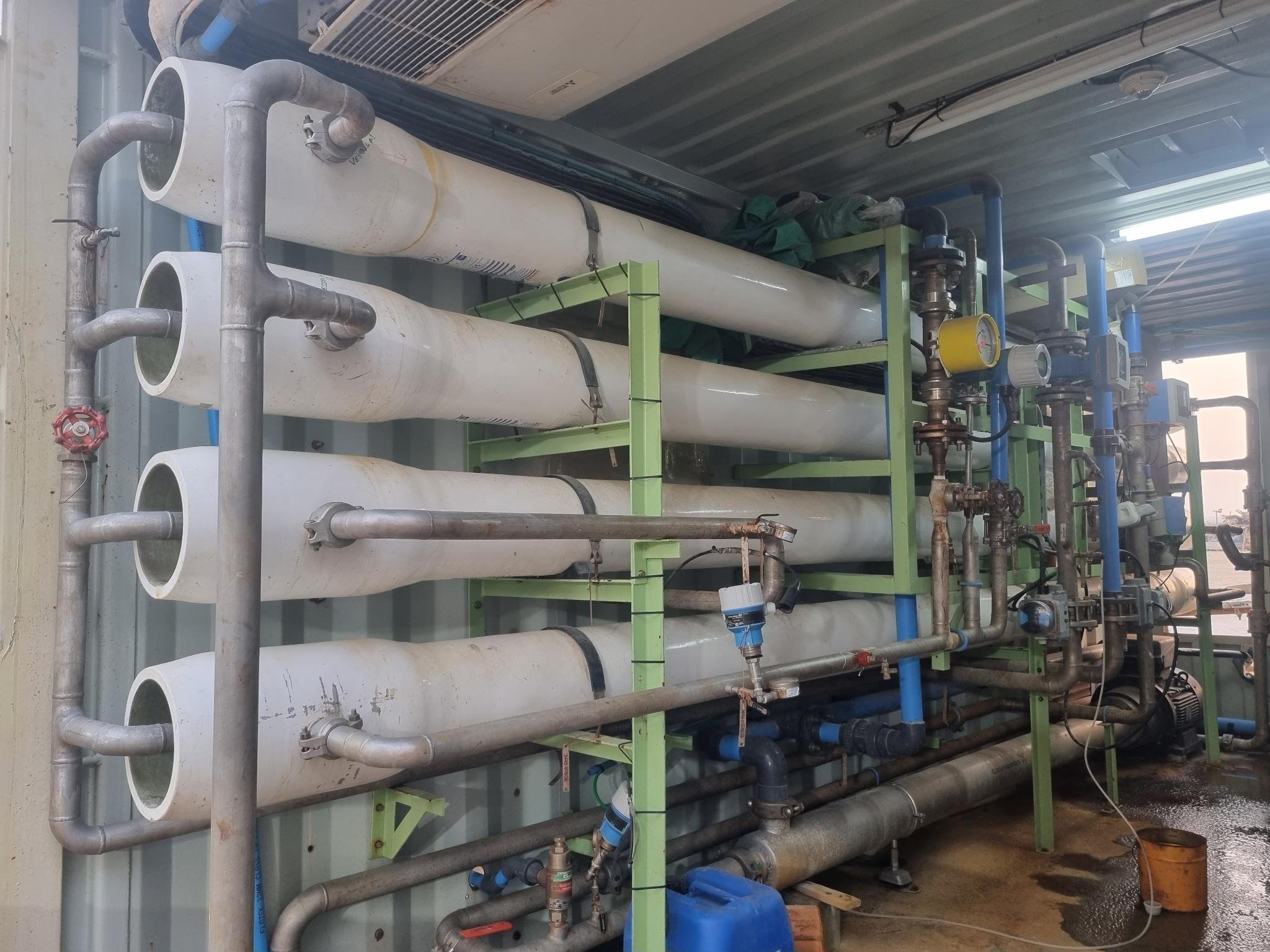

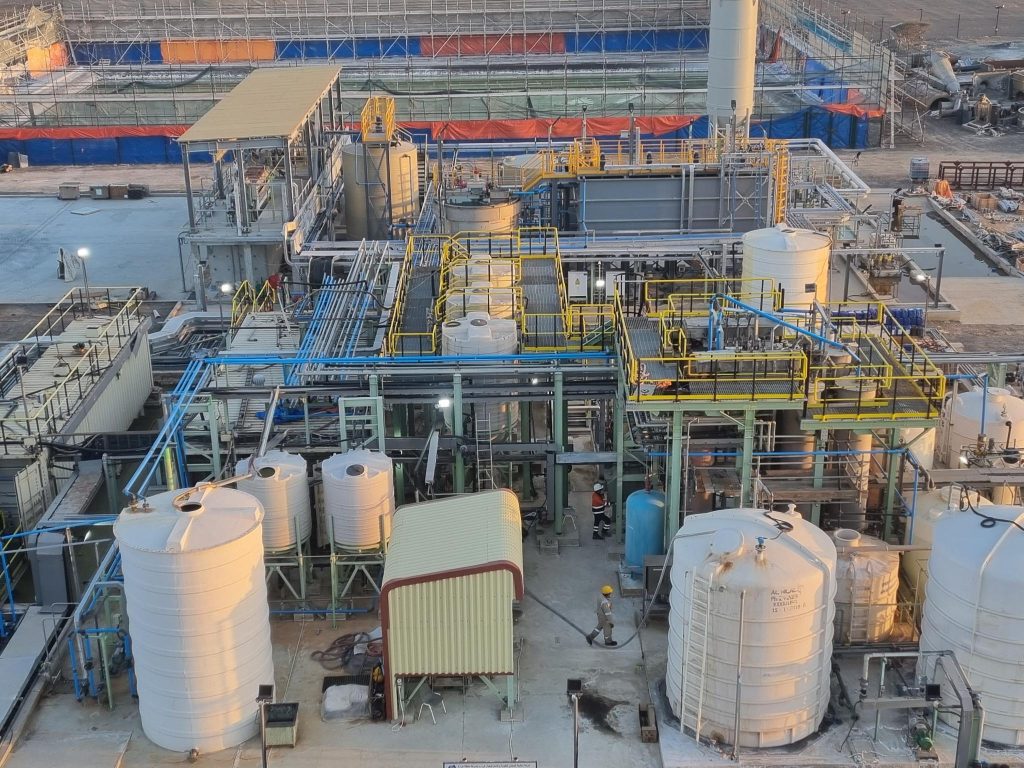

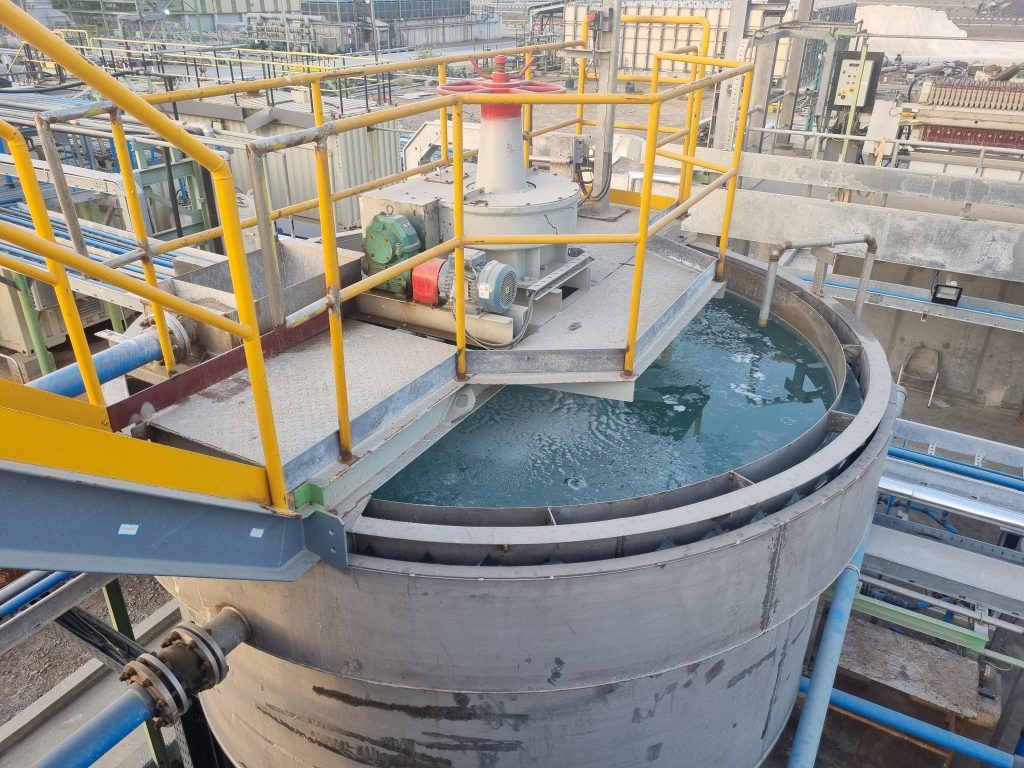

Clean TeQ Water were engaged to provide the engineering, procurement and construction of a 0.5ML/d plant in Oman. The plant uses a precipitation stage to remove antimony and arsenic, followed by Clean TeQ Water’s DESALX® technology to remove hardness and sulfates before continuing to reverse osmosis (RO). This process treats the waste stream from the plant and produces industrial quality water which is reused as process water. Installation started in 2018 and was finished in 2019.

The plant was required to treat a range of different waste water flow rates and qualities. There are also no brine handling facilities on site, so there was a zero liquid brine requirement. There was a restricted budget, so an efficient and economical process was required. Equipment also needed to be robust and resilient to survive hot and humid Middle Eastern conditions.

A combination of precipitation, continuous ion exchange (DESALX®), and reverse osmosis were used to treat the wastewater. The process is cost-effective, highly robust, and economical, meeting the client’s requirements.

Water Quality

SpeciesUnitFeed WaterProduct Water
Calciumppm77949.41
Sulphateppm1,871.00134.14
Total TDSppm2,650280
Cations(meq/L)38.883.35
Anions(meq/L)38.964.95
Gypsum Waste(kg/h)28
